Push Igniter Kit by The Outdoor Plus

The Outdoor Plus Push-Button Spark Ignition Kit adds push-button lighting to a compatible gas fire feature without running hard-wired electrical lines. Powered by a 1.5V DC AA battery, the ignition module produces a 15kV DC spark at the burner head, providing an alternative to lighting by hand.

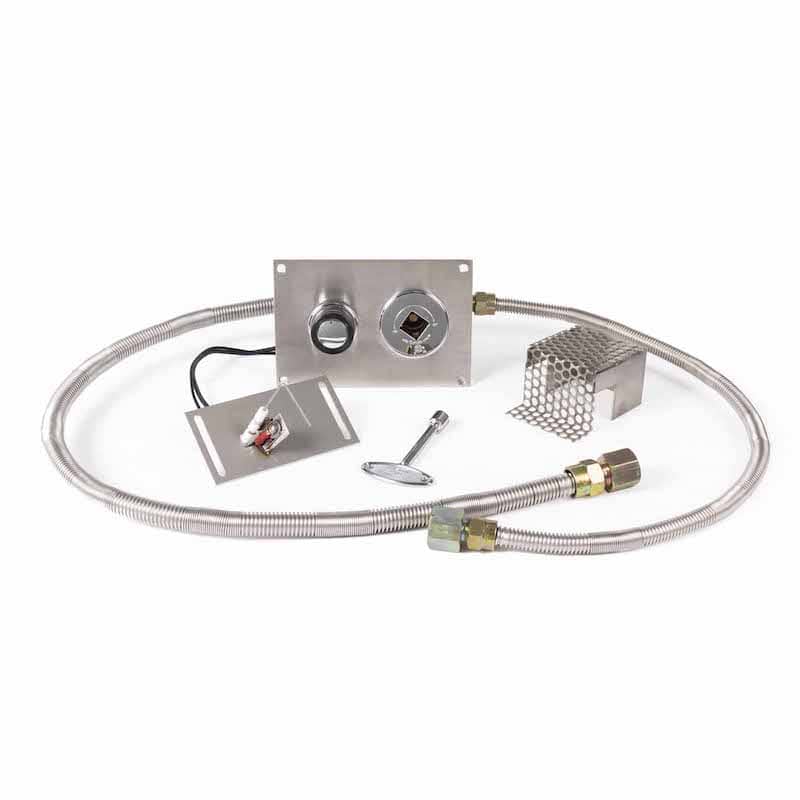

Each kit includes a weather-resistant mounting plate for the push-button module and chrome turn key, a brass key valve, and fuel-specific stainless steel whistle-free plumbing. The spark electrode connects through 36-inch electrical leads and features a stainless steel protective hood to help shield the contact point from water and debris.

Fuel & Capacity Options

• Liquid Propane, Standard Capacity: Supports up to 290,000 BTU. Includes a 30″ whistle-free hose with 3/8″ internal diameter, low-pressure regulator, and brass air mixer.
• Liquid Propane, High Capacity — OPT-2322LPHC: For 290,000 BTU and above. Includes a 30″ whistle-free hose, low-pressure regulator, and brass air mixer. Hose diameter varies by configuration.
• Natural Gas, Standard Capacity — OPT-2322NG: Supports up to 290,000 BTU. Includes a 36″ whistle-free hose with 1/2″ internal diameter.
• Natural Gas, High Capacity — OPT-2322NGHC: For outputs over 290,000 BTU. Includes a 36″ whistle-free hose with 1/2″ internal diameter and a high-flow key valve.

For propane models, the included brass air mixer blends air with the fuel before combustion to help reduce soot buildup.

Select the kit that matches your fuel type, burner requirements, and gas supply. At the 290,000-BTU boundary, confirm the appropriate configuration before ordering.

This is a manual push-button spark ignition kit, not a SWEIS automated ignition system.
