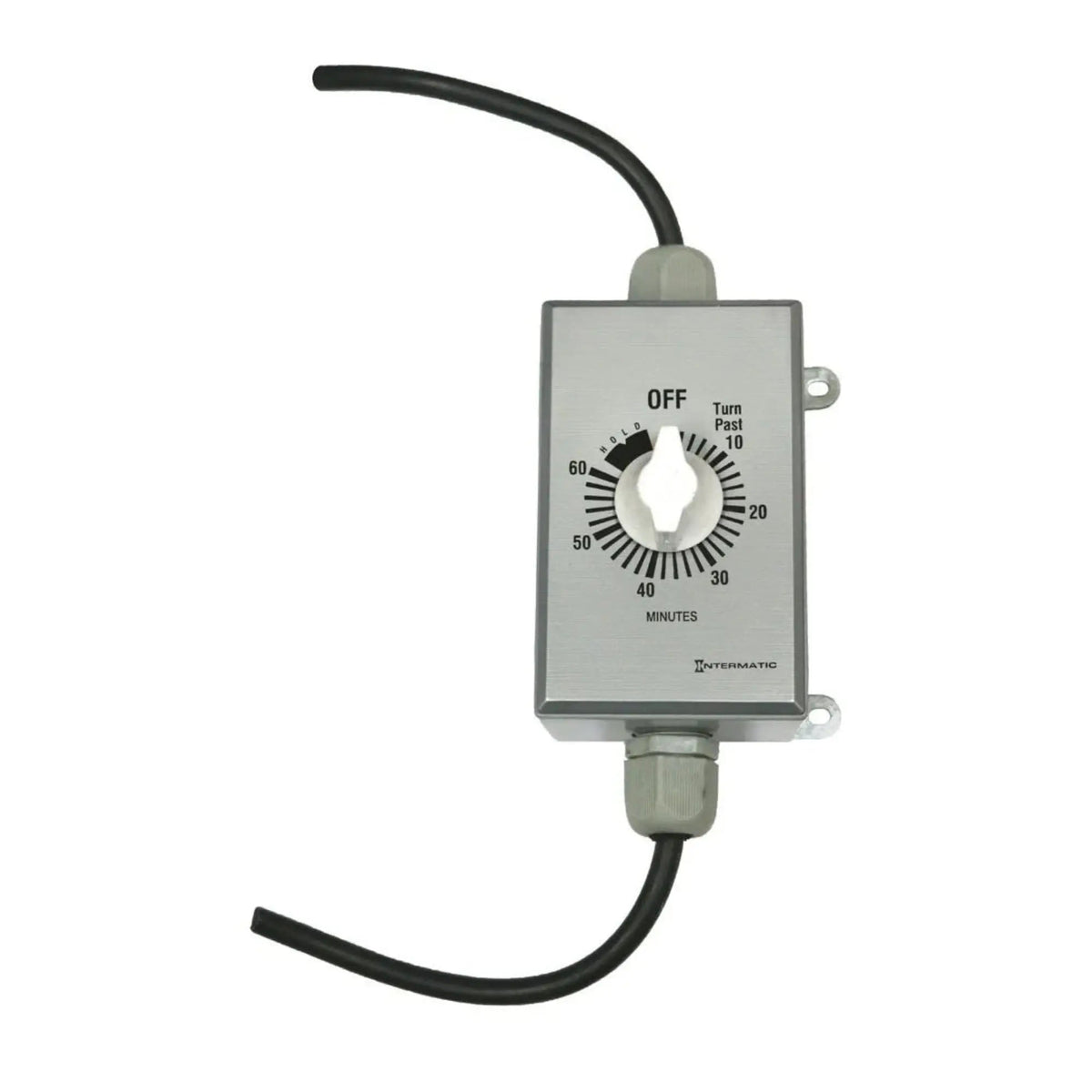

Electric 1-Hour Dial Timer by The Outdoor Plus

The Outdoor Plus OPT-DTM is an electrical dial timer engineered as a safety and automation accessory for outdoor fire features. Turn the rotary knob to your chosen duration, and the mechanical timer automatically cuts electrical power to the system once the time runs out, helping prevent fuel waste and the safety hazards of accidentally leaving a feature running.

Key Features & Specifications

• Primary function: Manual countdown shutoff switch; the mechanical timer cuts electrical power automatically once the chosen time runs out.
• Runtime: Often retail-cataloged as a "1-Hour Dial Timer," but official documentation notes the dial accommodates up to a 2-hour maximum runtime, adjustable from 10 to 120 minutes.
• System compatibility: Strictly designed for electronic ignition models only (such as Smart Web Electronic Ignition System / SWEIS setups). Completely incompatible with match-lit units.
• Enclosure: Built into a weather-resistant, outdoor-rated electrical box and cover with three 1/2-inch conduit entries.
• Wiring: Pre-suited exclusively for 110V/120VAC wiring and must be mounted on the 110VAC side of the ignition system's transformer.
• Installation: The Outdoor Plus mandates that installation be handled by a licensed technician, plumber, or gas company agent to ensure safe and correct function.
