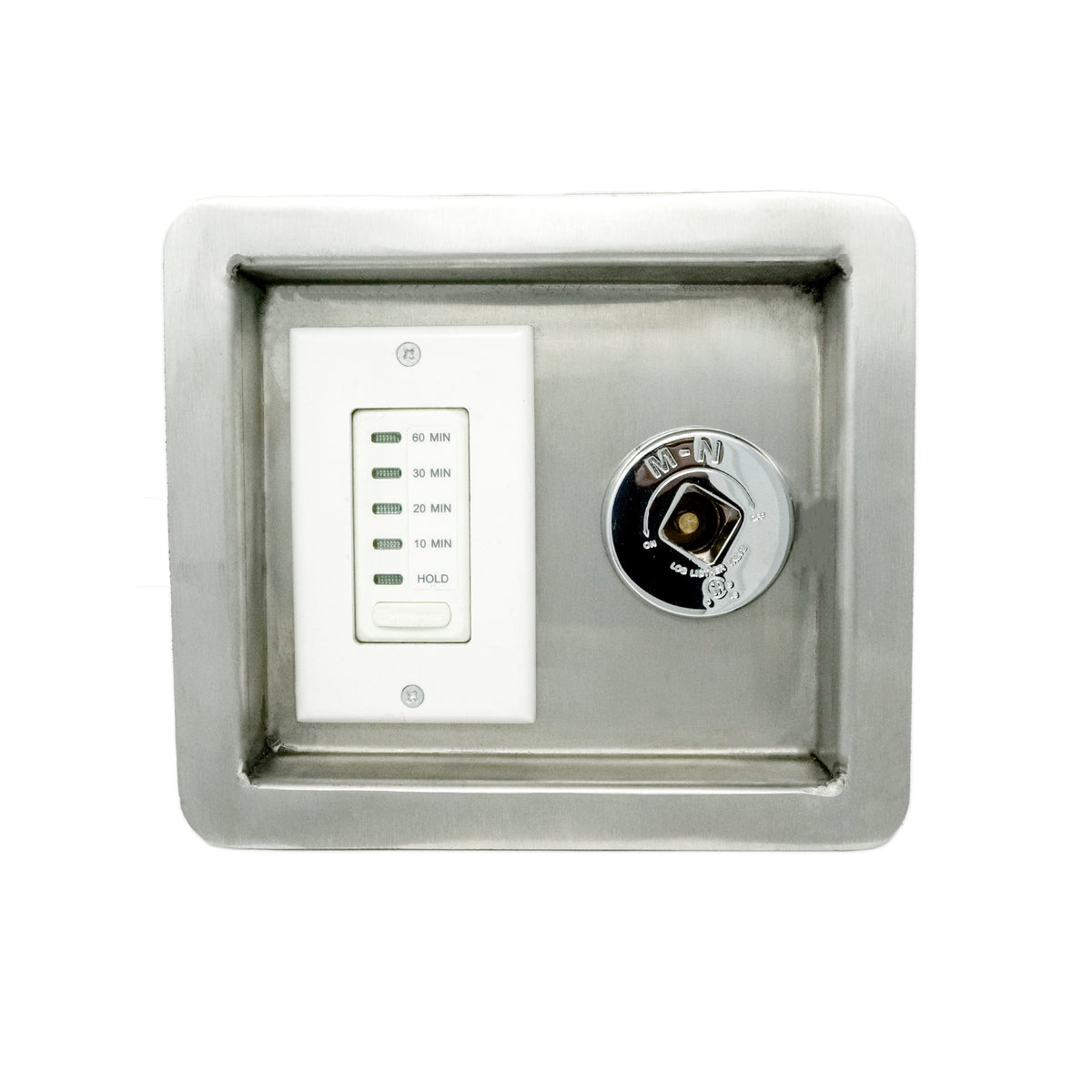

110V 1-Hour Push-Button Timer by The Outdoor Plus
Why Buy From The Manor & Terrace?
As an authorized dealer of the world's leading outdoor living brands, The Manor & Terrace is your trusted partner from first question to final installation. We offer expert design consultation, flexible financing, white glove delivery, and full warranty support — so every purchase is backed by people who know the products and stand behind them.
The Outdoor Plus OPT-BTTS In-Wall 1-Hour Push-Button Timer provides selectable runtime control for compatible 110V automated outdoor fire and water features. A single button cycles through four timed settings and a manual Hold mode.
For compatible electronic ignition fire features, including appropriate SWEIS configurations, the timer controls the electrical supply for the selected interval. It is not compatible with manual match-lit fire features.
Features & Specifications
- Model: OPT-BTTS
- Electrical compatibility: 110V systems only
- Timed settings: 10, 20, 30, or 60 minutes
- Hold mode: Manual bypass of the timed cycle
- Control: Single push-button interface
- Enclosure: Outdoor-rated electrical box and cover
- Wiring access: Three 1/2-inch conduit entries
- General-purpose/resistive load rating: 15A
- Tungsten load rating: Up to 1,000W
Installation & Operation
Confirm electrical load and compatibility with the exact feature and ignition system before ordering. Have the timer installed by a qualified electrical professional following the manufacturer’s installation instructions and applicable local requirements.
A timer does not replace supervision. Never leave an operating fire feature unattended. Hold mode bypasses the timed cycle; do not rely on automatic timed shutoff while Hold is selected.
