1-Hour Gas Timer with Emergency Stop by The Outdoor Plus
Why Buy From The Manor & Terrace?
As an authorized dealer of the world's leading outdoor living brands, The Manor & Terrace is your trusted partner from first question to final installation. We offer expert design consultation, flexible financing, white glove delivery, and full warranty support — so every purchase is backed by people who know the products and stand behind them.
Control gas-flow time with The Outdoor Plus 1-Hour Gas Timer with Emergency Stop. This mechanical assembly combines a countdown timer, emergency shut-off, and manual gas shut-off function without batteries or external electrical power.
Mounting Options
- Base Unit — OPT-ESTOPTM
- With Mounting Plate — OPT-ESTOPTMPL
Specifications
- Maximum countdown: 60 minutes
- Fuel: Natural Gas or Liquid Propane; no fuel conversion required for the timer
- Connections: Two 1/2-inch NPT inlets and two 1/2-inch NPT outlets
- Maximum operating pressure: 1/2 PSI
- CSA-rated capacity: 165,000 BTU/hr at a 1-inch water-column pressure drop for Natural Gas
- Timer body dimensions: 4 inches H × 2-7/8 inches W × 2-1/8 inches D; mounting plate dimensions are additional
Installation & Use
Have a qualified gas professional verify compatibility with your appliance and ignition system, gas-flow requirements, mounting arrangement, and applicable installation requirements before installation. This listing does not establish compliance with local codes.
Follow the manufacturer’s operating instructions. Do not force the timer dial back to OFF after setting it; use the emergency-stop control or allow the timer to expire as directed.
Guides & Documentation
Gas Timer with E-Stop User Manual

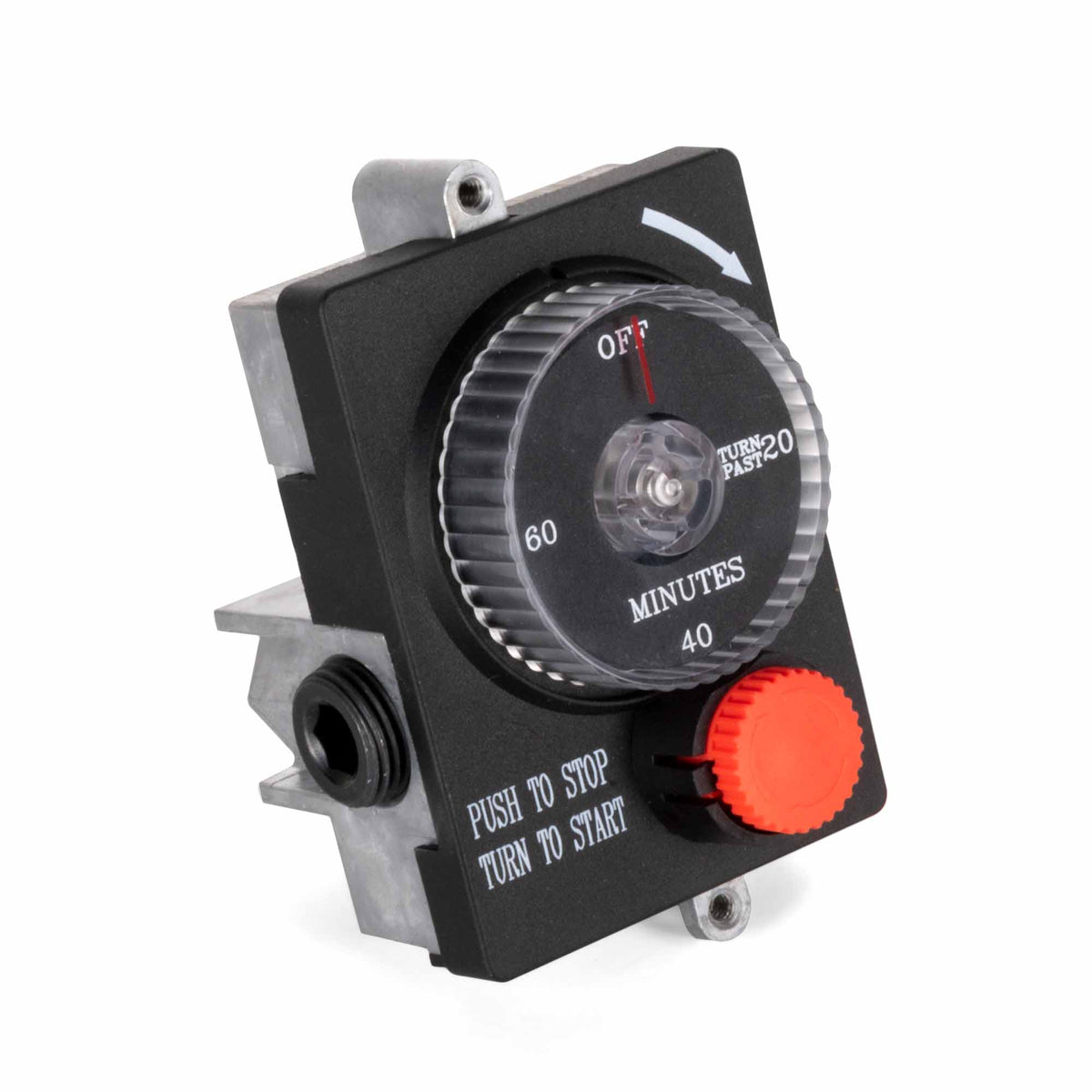

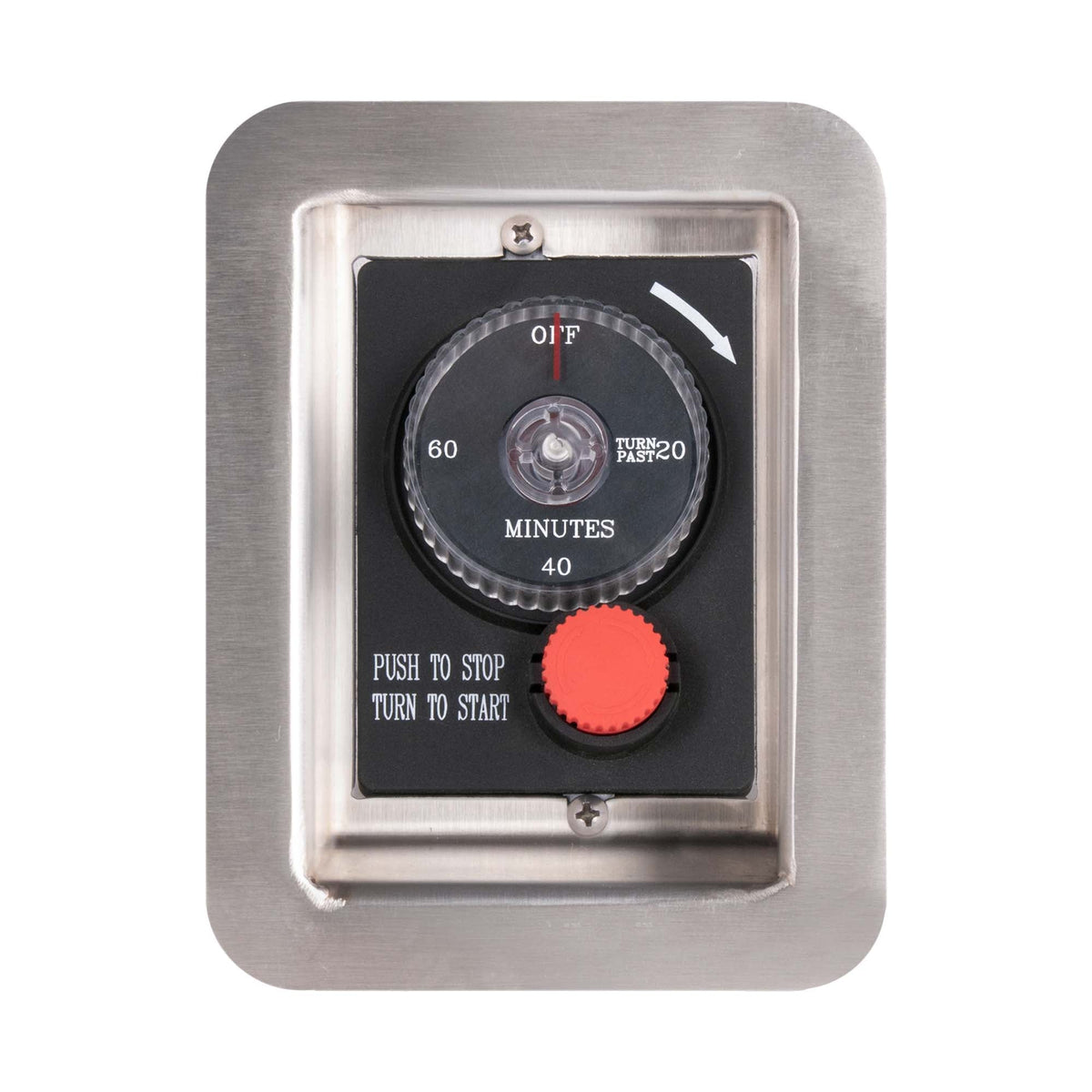

Photos show the base timer and the version with mounting plate. Select your preferred mounting configuration.
